The M200 V4 delivers full V4 performance and quality, with some units featuring V3+ laser markings to sustainably use existing inventory, ensuring every other aspect is identical to the V4.
M200 V4 1900 Lumens 18650 Magnetic USB Rechargeable LED Flashlight
LED:
TN Cool White CCT 5700K~6500K
SFT25R CCT 5700K~6500K
Nichia 519A Neutral White High CRI R9080 CCT 5000K
SL-F35R High CRI Ra95 R9>80 CCT 4500K-5000K

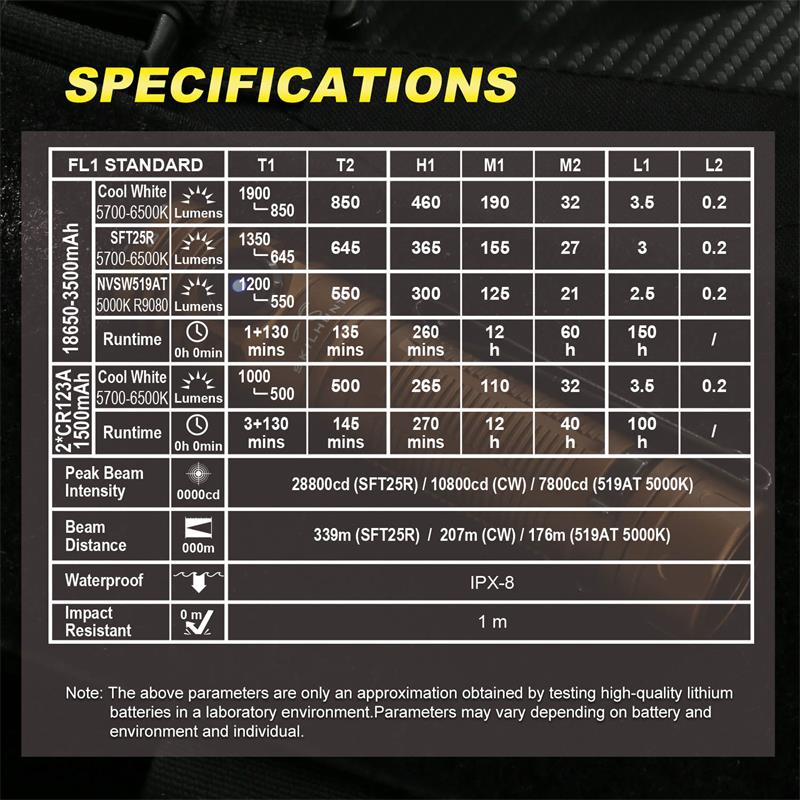

Max output:
TN CW : 1900 Lumens
SFT25R CW: 1350 Lumens
Nichia 519A : 1200 Lumens
F35R High CRI: 880 Lumens
Max runtime: Few months
Quiescent Current ：20μA
Max beam distance: 339m (SFT25R) / 207m (CW) / 176m (519AT 5000K) 276m(F35R )
Max peak beam intensity: 28800cd (SFT25R) / 10800cd (CW) / 7800cd (519AT 5000K)/19100cd (F35R )

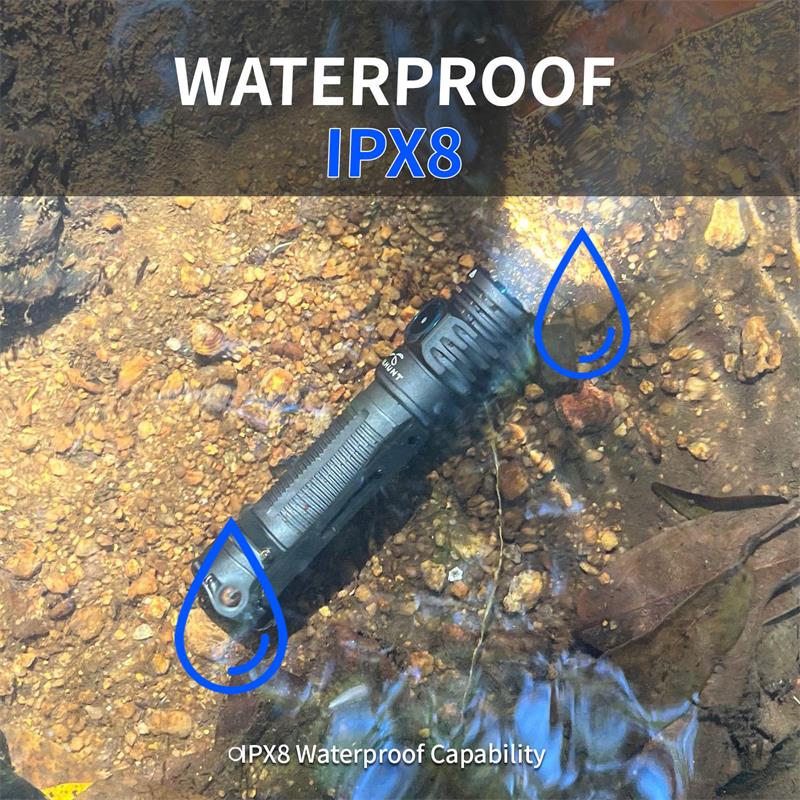

Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18650 , 2 × CR123A
Rated Range: 2.7V ~ 6.5V

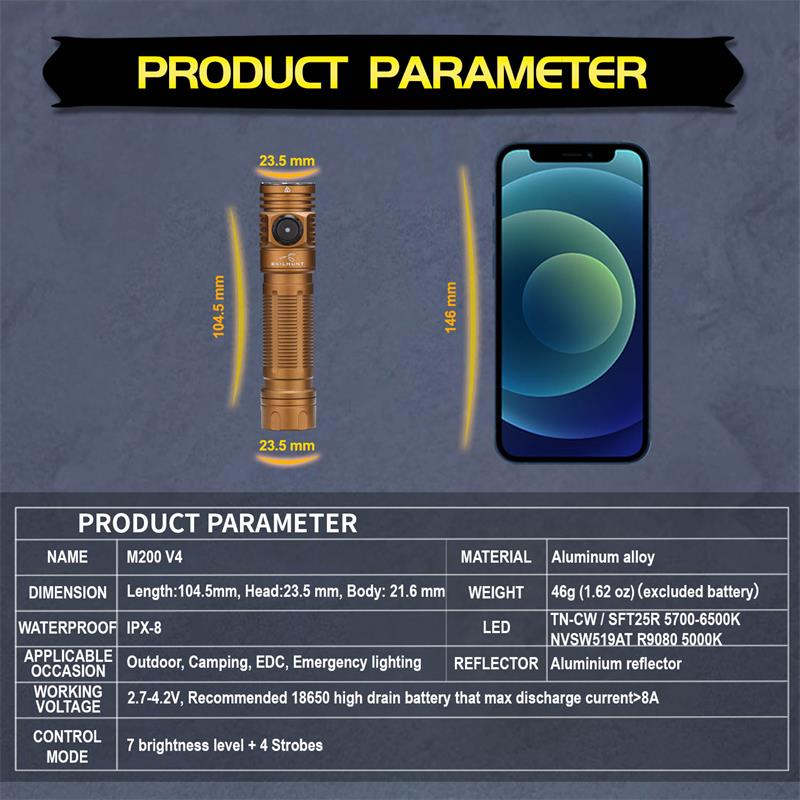

Dimension: L104.5 mm / 4.11″, Head diameter 23.5mm / 0.93 ”
Weight: 46 g / 1.62 oz (without battery)

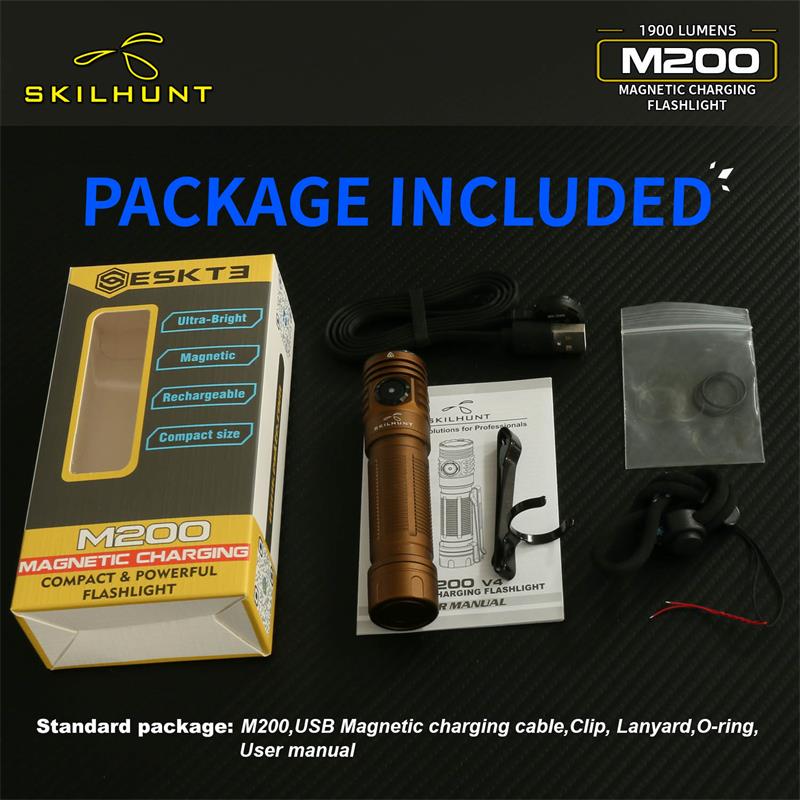

Accessories: 1*M200, Magnetic Charging Cable, Clip, Lanyard, Spare O-rings,User manual.

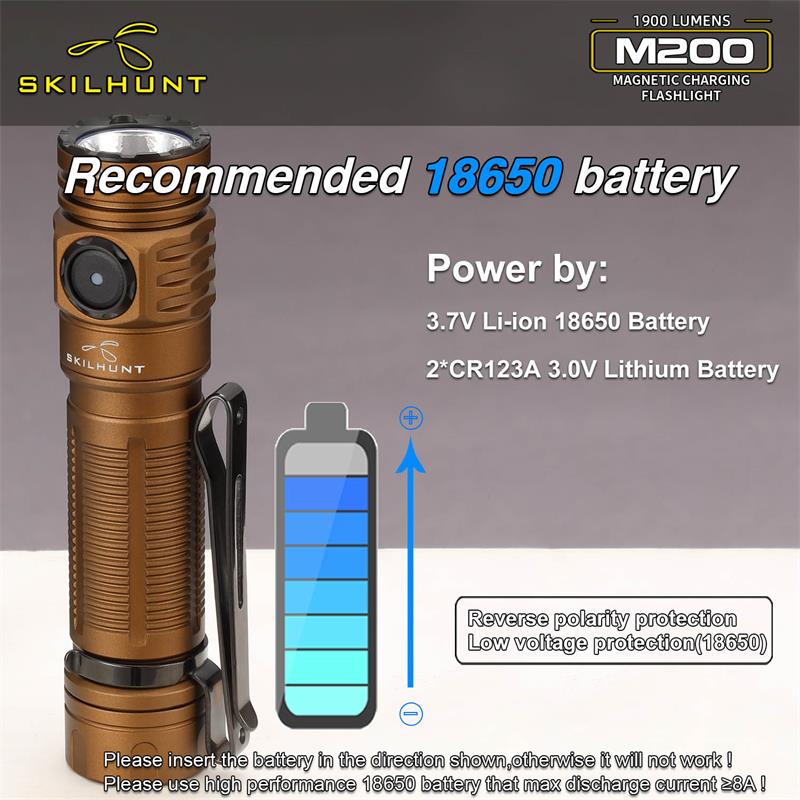

Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.
How to use
- ON/OFF
Single-click the side switch to turn the light on/off. When the light is turned off,
it will memorized the current brightness level or mode.

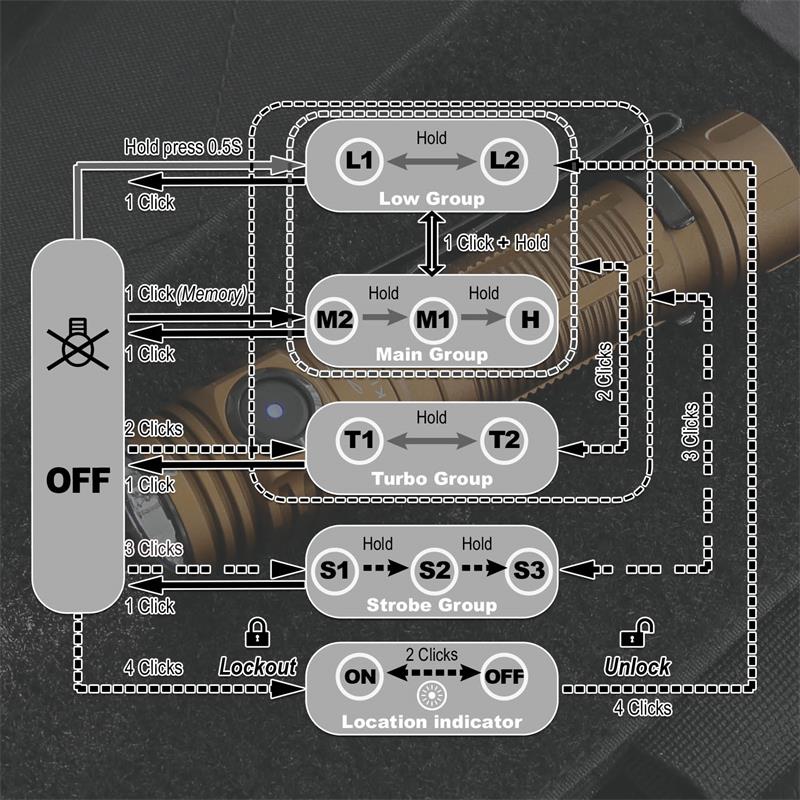

- CHANGE BRIGHTNESS LEVEL
When the flashlight is OFF :
Single-click the switch to select <Main Group> (H-M1-M2).
Press and hold the switch for 0.5 seconds to select <Low Group>(L1/L2).
Double-click quickly to switch <Turbo Group> (T1/T2).
Triple-click quickly to switch to <Strobe Group> (S1/S2/S3).
When the flashlight is ON in<Main Group>, <Turbo Group>, or <Low Group>
Press and hold the switch to cycle through levels. The level will be set when the switch
is released, and it will be memorized when turned off.
When the flashlight is ON in <Low Group> <Main Group>
Quickly double-click to switch <Turbo Group>, and quickly double-click again to return
to the previous level.
Quickly triple-click to switch <Strobe Group>, and quickly triple-click again to return to
the previous level.
Quickly click and hold to toggle between <Low Group> and <Main Group>.
When the flashlight is ON in <Strobe Group>
Press and hold the switch to cycle through S1-S2-S3, and the memorized setting will be
turned off.

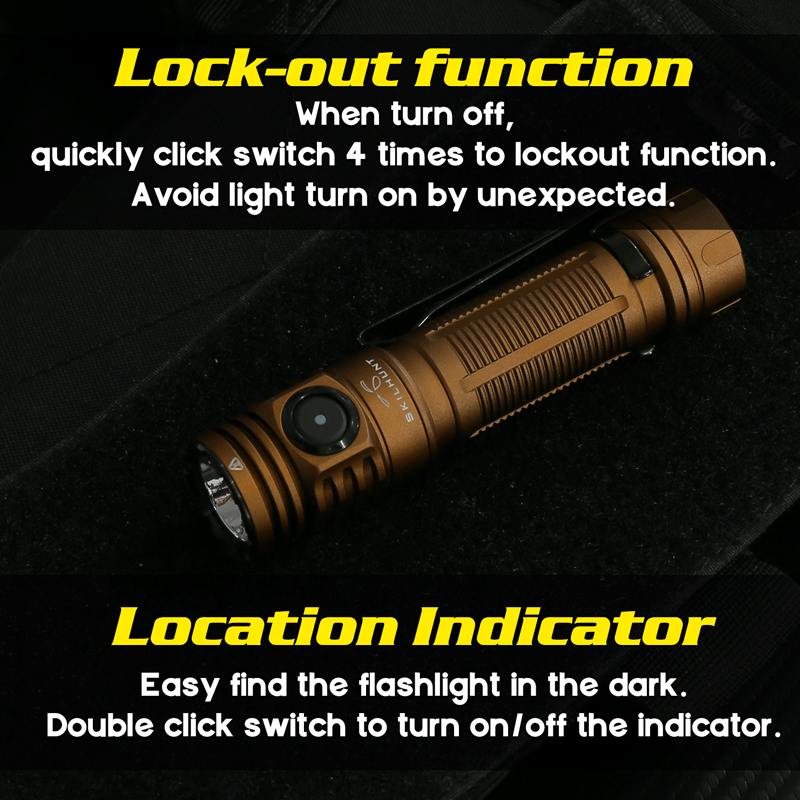

3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click the switch 4 times to enter the lockout mode
(the location indicator will activate at the same time, flashing once every second).
Double-clicking the switch will turn the indicator on or off.
Quickly click the switch 4 times again to unlock the button and activate Low mode.
- LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,
and the light flashes rapidly every 2 minutes.
When the battery voltage drops below 2.7V, the light will turn off.
Features
1.Super bright & latest LEDs, More options for LED. Max 1900 Lumens

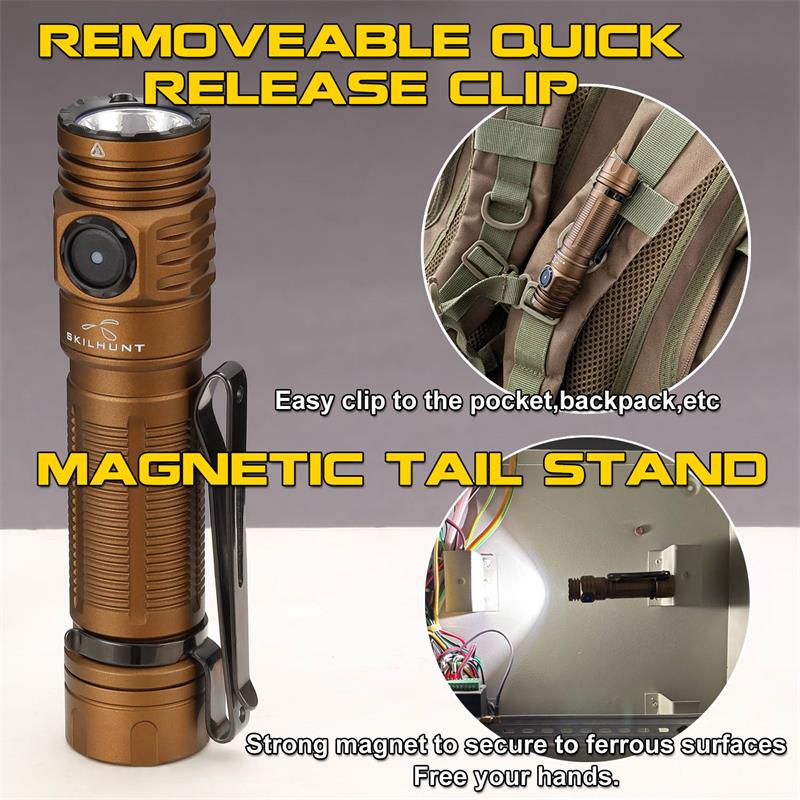

2.Removeable multi-directional pocket clip.
3.Rugged indestructible aluminum body with anti-scratching type III hard anodization
4.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Easy to operate multi-function switch
7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.When light lockout, location indicator will flash, easy get the light in dark.
12.Magnetic tail, can be used in many special occasions, use as candle light, etc.
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.
Notice:
Before operating this product, please read the enclosed User Manual completely.
If the product is left unused or carried and transported, please lock the button or slightly
loosen the tail thread to avoid accidentally activating the flashlight.
When the product is used in a low-temperature environment, please try and keep it warm.
If the temperature is too cold, it may not affect the output and runtime.

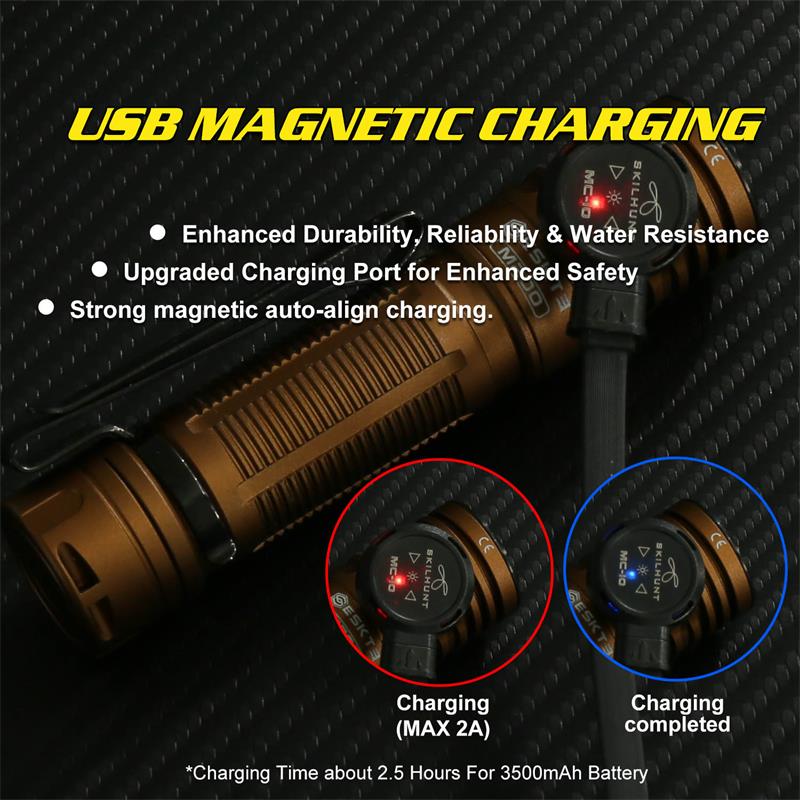

Charging
Connect the magnetic charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging will damage the charging circuit.
