M150 V4 EDC AA 14500 USB magnetic charging flashlight

The M150 V4 delivers full V4 performance and quality, with some units featuring V3+ laser markings to sustainably use existing inventory, ensuring every other aspect is identical to the V4.

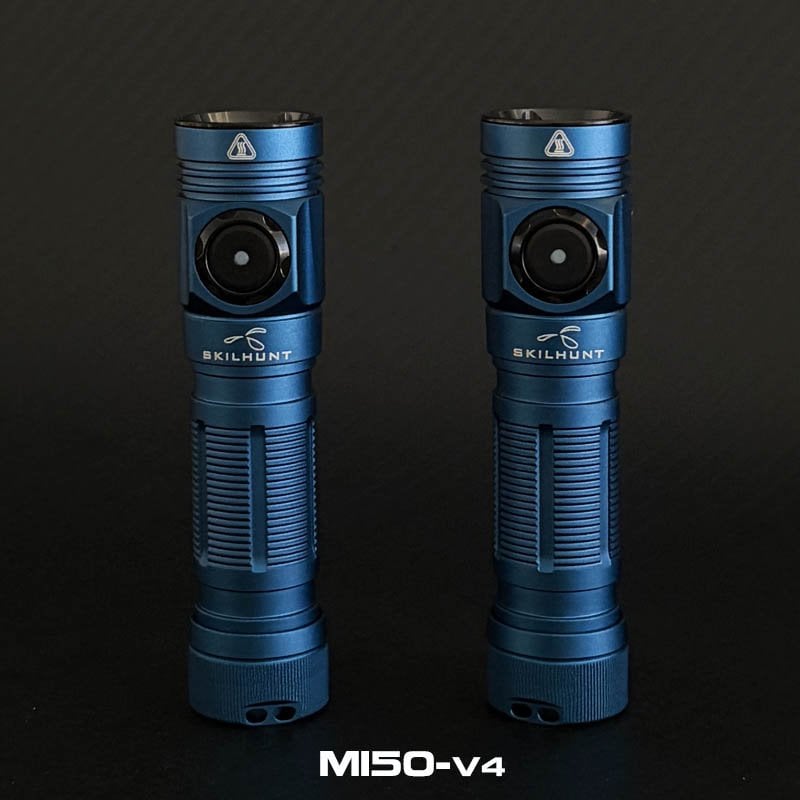

M150 V4 magnetic charging flashlight

LED:

TN Cool White 5700K~6500K
SFT25R-HI 5700K~6500K
Neutral White Nichia 519A CRI90 5000K
Neutral White Nichia 519A CRI90 4000K
Warm White Nichia 519A CRI90 3000K
SL-F35R High CRI Ra95 R9>80 4500K-5000K

Max Output:
CW 850 Lumens
SFT25R HI 620 Lumens
519A 5000K 540 Lumens
519A 4000K 510 Lumens
519A 3000K 420 Lumens
F35R 420 Lumens

Max runtime: Few months
Max beam distance:
14500: 230m (HI) / 134m (CW) / 114m (5000K) / 113m (4000K) / 101m (3000K) / 172m(F35R)
Ni-MH: 131m (HI) / 72m (CW) / 62m (5000K) / 60m (4000K) / 54m (3000K)

Max peak beam intensity:
14500: 13300cd (HI) / 4500cd (CW) / 3300cd (5000K) / 3200cd (4000K) / 2600cd (3000K) / 7400cd (F35R)
Ni-MH: 4300cd (HI) / 1300cd (CW) / 980cd (5000K) / 920cd (4000K) / 750cd (3000K)

Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×14500 , 1x AA
Rated Range: 0.8V ~ 4.2V
Dimension:
Length 84.0mm / 3.30 inch
Head diameter 21.0mm / 0.82 inch
Weight: 34 g / 1.20 oz (without battery)
Accessories: User manual,Spare O-rings,Lanyard,Clip, Magnetic Charging Cable .

Battery installation :
Insert the battery positive pole toward the light head,otherwise it will not work.

How to use

ON/OFF

Single-click the side switch to turn the light on or off. When the light is turned off,

it will memorize the current brightness level or mode.

CHANGE BRIGHTNESS LEVEL

When the flashlight is OFF :

Single-click the switch to select the <Main Group> (H-M1-M2).

Press and hold the switch for 0.5 seconds to select the <Low Group>(L1/L2).

Double-click quickly to switch to the <Turbo Group> (T1/T2).

Triple-click quickly to switch to the <Strobe Group> (S1/S2/S3).

When the flashlight is ON in<Main Group>, <Turbo Group>, or <Low Group>

Press and hold the switch to cycle through levels. The level will be set when the switch

is released, and it will be memorized when the light is turned off.

When the flashlight is ON in <Low Group> <Main Group>

Quickly double-click to switch to the <Turbo Group>, and quickly double-click again to

return to the previous level.

Quickly triple-click to switch to the <Strobe Group>, and quickly triple-click again to

return to the previous level.

Quickly click and hold to toggle between <Low Group> and <Main Group>.

When the flashlight is ON in <Strobe Group>

Press and hold the switch to cycle through S1-S2-S3, the selected setting will be

memorized when turned off.

3.LOCK-OUT FUNCTION & LOCATION INDICATOR

When the flashlight is off , quickly click the switch 4 times to enter the lockout mode

(the location indicator will activate at the same time, flashing once every second).

Double-clicking the switch will turn the indicator on or off.

Quickly click the switch 4 times again to unlock the flashlight and activate Low mode.

LOW VOLTAGE INDICATOR

When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.

When the battery voltage drops below 2.7V, the light will turn off automatically

Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head on the ground. The radiation energy of the flashlight may cause damage to the flashlight itself, or even result in burning to other materials. Please do not use the turbo mode continuously when the environmental temperature is high in case the flashlight body is too hot to hold. Please do not put the light with magnetic items such as bank cards and mobile phones.

Notice:
Before operating this product, please read the enclosed User Manual completely. If the product is left unused or carried and transported, please lock the button or slightly loosen the tail thread to avoid accidentally activating the flashlight. When the product is used in a low-temperature environment, please try and keep it warm. If the temperature is too cold, it may not affect the output and runtime.

Charging
Connect the magnetic charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 5W (5V 1A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
Rechargeable function only for one 14500 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging will damage the charging circuit.
