EC150 AA 14500 USB-C Rechargeable LED Flashlight
EC150 AA 14500 EDC USB-C Rechargeable LED Flashlight

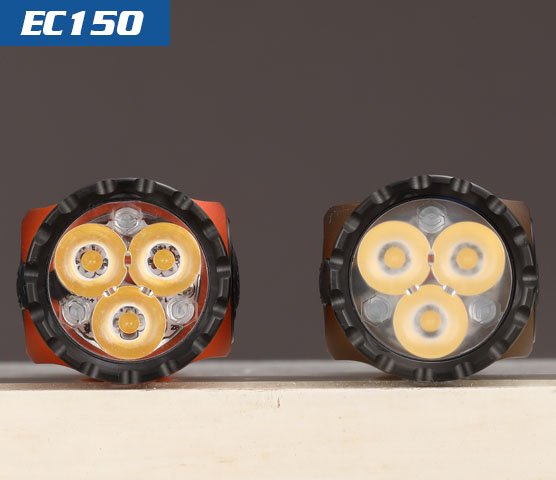

LED: 3 x Cool White SFT25R 5700K~6500K / 3 x Neutral White Nichia 519A CRI90 5000K
Battery: 1×14500 , 1x AA
Rated Range: 0.9V ~ 4.2V, (Recommended 14500 battery that max discharge current >3A)
Quiescent Current : 35 μA （3.7V Li-ion battery) , 55 μA （1.5V battery)

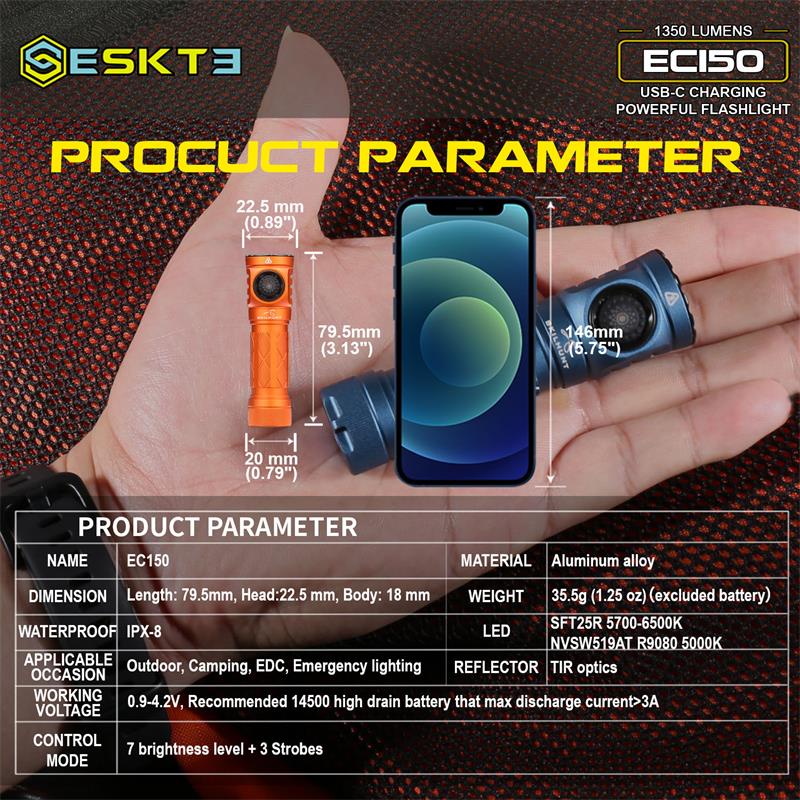

Dimension:
Length 79.5mm(3.13 inch)
Head diameter 22.5mm (0.89 inch)
Weight: 35.5g / 1.25 oz (without battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.
Battery installation :
Insert the battery positive pole toward the light head,otherwise it will not work.
How to use
- ON/OFF
Single-click the side switch to turn the light on or off. When the light is turned off,
it will memorize the current brightness level or mode.
- CHANGE BRIGHTNESS LEVEL
When the flashlight is OFF :
Single-click the switch to select the <Main Group> (H-M1-M2).
Press and hold the switch for 0.5 seconds to select the <Low Group>(L1/L2).
Double-click quickly to switch to the <Turbo Group> (T1/T2).
Triple-click quickly to switch to the <Strobe Group> (S1/S2/S3).
When the flashlight is ON in<Main Group>, <Turbo Group>, or <Low Group>
Press and hold the switch to cycle through levels. The level will be set when the switch
is released, and it will be memorized when the light is turned off.
When the flashlight is ON in <Low Group> <Main Group>
Quickly double-click to switch to the <Turbo Group>, and quickly double-click again to
return to the previous level.
Quickly triple-click to switch to the <Strobe Group>, and quickly triple-click again to
return to the previous level.
Quickly click and hold to toggle between <Low Group> and <Main Group>.
When the flashlight is ON in <Strobe Group>
Press and hold the switch to cycle through S1-S2-S3, the selected setting will be
memorized when turned off.
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click the switch 4 times to enter the lockout mode
(the location indicator will activate at the same time, flashing once every second).
Double-clicking the switch will turn the indicator on or off.
Quickly click the switch 4 times again to unlock the flashlight and activate Low mode.
- LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off automatically
Features
1.Super bright & latest LED, Max 1350 lumens. High-Performance, High-Efficiency and energy conservation.
2.Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.
3.Built-in USB-C charging system, fast charge and convenient.
4.Rugged indestructible aluminum body with anti-scratching type III hard anodization
5.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Side switch button to transferring mode user-friendly interface to adjust output.
7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.
12.When light lockout, location indicator will flash, easy get the light in dark.
13.Magnetic tail, can be used in many special occasions, use as candlelight, etc.
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head on the ground. The radiation energy of the flashlight may cause damage to the flashlight itself, or even result in burning to other materials. Please do not use the turbo mode continuously when the environmental temperature is high in case the flashlight body is too hot to hold. Please do not put the light with magnetic items such as bank cards and mobile phones.
Notice:
Before operating this product, please read the enclosed User Manual completely. If the product is left unused or carried and transported, please lock the button or slightly loosen the tail thread to avoid accidentally activating the flashlight. When the product is used in a low-temperature environment, please try and keep it warm. If the temperature is too cold, it may not affect the output and runtime.
Charging
Connect the USB charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 5W (5V 1A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
Rechargeable function only for one 14500 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging will damage the charging circuit.
Usage and Maintenance
Use quality batteries so as not to damage the light due to leaks or other self-destructive possibilities.
Remove batteries when light will not be used for an extended period or if batteries are discharged.
When using Li-ion batteries,we recommends the use of protected batteries. Clean contacts, threads and O-rings of the flashlight with clean cloth from
time to time when necessary.
Should flickers or doesn’t light up this the most likely cause.
If flashlight is used in wet environment, lubricate O-rings frequently to
maintain watertight seal. inspected and cleaned if necessary.
Products Warranty
1.SKILHUNT warrants our products to be free from defects in materials
and workmanship.
2.Within 15 days of purchase,any defective lights will be offered free
replacement by SKILHUNT distributors unconditionally.except for damage
caused by misuse or insert batteries in wrong way or batteries weeping.
3.Within 24 months from the day of purchase.
SKILHUNT offers free repair after service,except for damages caused by
misuse or insert batteries in wrong way or batteries weeping.
4.Limited lifetime warranty.
SKILHUNT will still provide with warranty service.
Labor is free but we will charge for parts.
The total repair fee is assessed according to the cost of the replaced materials.
Freight should be paid by customers.
5.More details about warranty service,please contact local distributors or dealers
