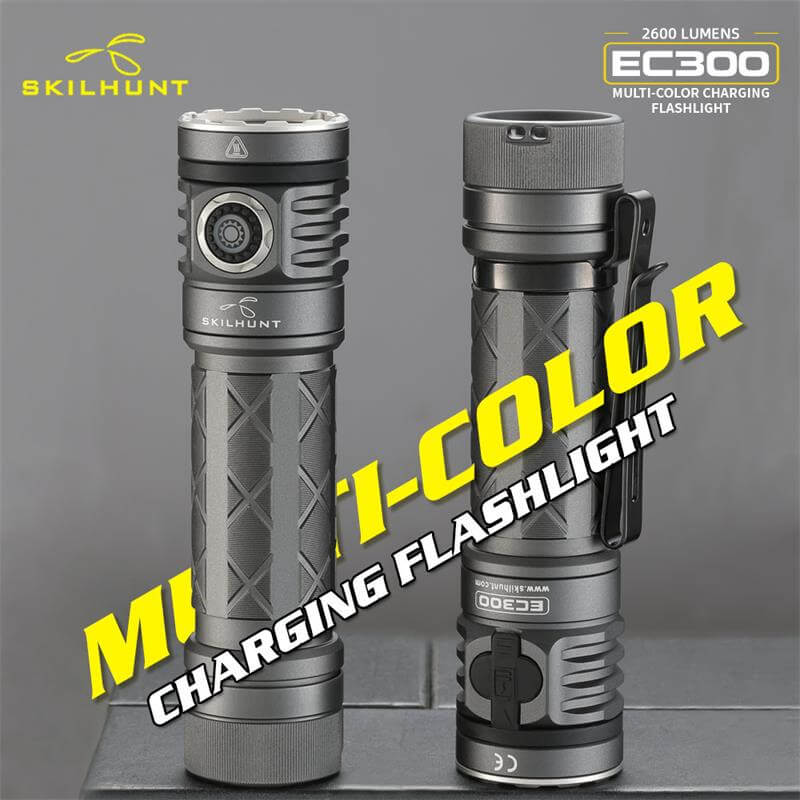

EC300 RGBW Multi-color 21700 Rechargeable USB-C PD LED flashlight

LED: Luminus SST-20 x 4  + RGB LEDs

Max output:

White : LED  2600 Lumens,  ANSI 2300 Lumens (CW) , ANSI 1500 Lumens (High CRI)

Red: 10 Lumens / wavelength 620-625 nm ,  Green: 28 Lumens / wavelength 525-530 nm, Blue: 7.5 Lumens / wavelength 455-460 nm

Max runtime: 30 days
Quiescent Current (mA):0.05
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×21700
Rated range: 2.8-4.2V,(Recommended 21700 battery that max discharge current ≥8A)
Dimension: L115mm/4.53″, Head diameter 29.5mm/1.16″,Body diameter 28mm/1.10”.
Weight: 71.2 g / 2.50 oz (Excluded battery)
Accessories: USB Charging Cable, Clip, Lanyard, Spare O-rings.

How To Use:

1. ON/OFF
Single click the side switch to turn the light on/off. When the light is turned off,
it will memorized current brightness level or mode.

2. CHANGE BRIGHTNESS LEVEL
When the flashlight was OFF status:
Single click switch to Memory level (H-M1-M2).
Quickly double clicks switch to Turbo mode (T1/T2) .
Quickly triple-click switch to Strobe mode (S1/S2/S3/S4).
Hold press switch 0.5 second to Low mode (L1/L2) or Color mode (R/G/B).
When the flashlight was ON (T1/T2, H/M1/M2, L1/L2, R/G/B)
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON (L1/L2,R/G/B)
Quickly double clicks switch tranfer Low mode (L1/L2) to Color mode (R/G/B)
When the flashlight was ON (T1/T2, H/M1/M2)
Quickly double clicks switch tranfer memory level(H/M1/M2) to Trubo(T1/T2), repeat
quickly double clicks switch back to memory level(H/M1/M2). Quickly triple clicks switch
transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.
When the flashlight was ON (S1/S2/S3/S4)
Quickly double clicks switch tranfer S1-S2-S3-S4, turn off memorized.

3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate memory Low mode.

4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off.
Charging indicator
Red (charging)
Blue (completed)

Charging
Connect the USB charging cable to an external USB power source then attach the other
end of the cable to the charging port of the light.
(Recommeded USB power no less than 10W (5V 2A) ,Compatible with PD chargers)
The red indicator means charging, when the battery charging completed,
change to blue indicator.
NOTE: Rechargeable function only for one 21700 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,chagring will damage the charging circuit.

Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.

Battery installation

Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.

Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.

Features:

– A 2600 Lumens EDC flashlight with RGB colors light
– Customized user interface,Programmable variety of brightness
– Integrated charging / discharging system that compatible with USB-C PD
– Ultra efficiency circuit design, Up to 30 days runtime
– Efficient Carclo Quad optic Frosted TIR Lens
– Powered by a single 21700 rechargeable battery
– Two-color indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
– Side switch button to transferring mode, user-friendly interface to adjust output.
– Intelligent dynamic detection of voltage to balance and adjust brightness, safe and efficient use.
– Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
– Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
– Intelligent temperature control technology for flashlight stable and safe use.
– Reverse polarity protection, to protect from improper battery installation.
– Lock-out function. Avoids light turn on by unexpected.
– Location indicator help easy to find the light in dark.
